Visual Studio Code - Guide

This guide will help you get VS Code Setup as best as possible for 2sxc development.

Tip

You'll often write code in your 2sxc Apps - either as C#/Razor or JavaScript. 2sxc is a very open system, so you can use any editor you like. For quick fixes and simple things, use the built-in editor, which is based on Monaco (VS Code Online). But for more sophisticated stuff we highly recommend VS Code.

Important

In 2024-05 the C# DevKit suddenly stopped working. We found a fix - pls update your app.sln to the newest sample below.

Prepare VS Code for 2sxc

VSCode is amazing right out of the box, but to really be productive, you need to do a few things:

Install VS Code
Install the C# DevKit extensions
Configure each App with
1. Intellisense (see below)
2. Ignore the obj and .vs folders (see below)
Check possible edge cases (see below)

With these preparations, VS-Code is able to assist in basic C# code. It can't provide IntelliSense for 2sxc specific APIs yet, so for that, read on.

Old Instructions WIP
New Instructions WIP

Warning

The C# DevKit extension is still quite new and evolving. At the moment, various newer versions have issues which cause problems. Because of this, ATM recommend manually downgrading the C# extension to version 2.63.32.

Configure an App for Razor IntelliSense

Apps are usually opened as a folder in VS-Code. The problem for IntelliSense is that it doesn't know which DLLs it should use. So you need to tell it. This is done by adding a .sln solution file and a .csproj project file.

Tip

Adding these files helps VSCode provide IntelliSense. But be aware that it can't help with dynamic code. To get the full benefit, use typed code.

Add the following two files to the root of your app:

Microsoft Visual Studio Solution File, Format Version 12.00
# Visual Studio Version 17
VisualStudioVersion = 17.5.002.0
Project("{9A19103F-16F7-4668-BE54-9A1E7A4F7556}") = "App", "app.csproj", "{9F7A078F-99D5-4EF4-8EC0-C6B920FE679C}"
EndProject

#
# Visual Studio .sln File for 2sxc App
# This is necessary so that VS Code can perform intellisense in Razor
# It also requires a csproj file to exist as well
#
# Read more and get help for issues on https://go.2sxc.org/vscode
#

# Addition 2024-05
# The following section is suddenly required by the C# DevKit
# See https://github.com/microsoft/vscode-dotnettools/issues/1151
Global
	GlobalSection(SolutionConfigurationPlatforms) = preSolution
		Debug|Any CPU = Debug|Any CPU
		Release|Any CPU = Release|Any CPU
	EndGlobalSection
	GlobalSection(ProjectConfigurationPlatforms) = postSolution
		{9F7A078F-99D5-4EF4-8EC0-C6B920FE679C}.Debug|Any CPU.ActiveCfg = Debug|Any CPU
		{9F7A078F-99D5-4EF4-8EC0-C6B920FE679C}.Debug|Any CPU.Build.0 = Debug|Any CPU
		{9F7A078F-99D5-4EF4-8EC0-C6B920FE679C}.Release|Any CPU.ActiveCfg = Release|Any CPU
		{9F7A078F-99D5-4EF4-8EC0-C6B920FE679C}.Release|Any CPU.Build.0 = Release|Any CPU
	EndGlobalSection
  GlobalSection(SolutionProperties) = preSolution
		HideSolutionNode = FALSE
	EndGlobalSection
EndGlobal

<Project Sdk="Microsoft.NET.Sdk.Web">
  <!-- This file helps VS Code provide IntelliSense - see https://go.2sxc.org/vscode -->
  <!-- Template v2024-06-19. If you have issues, try getting a newer copy from the url above -->

  <!-- Specify the default Namespace for C# code in this specific App -->
  <PropertyGroup>
    <RootNamespace>AppCode</RootNamespace>
  </PropertyGroup>

  <!-- First: Detect if it's running in Dnn, Oqtane-Production or Oqtane-Dev -->
  <PropertyGroup>
    <RunningInDnn Condition="Exists('..\..\..\..\bin\DotNetNuke.dll')">true</RunningInDnn>
    <RunningInOqtane Condition="Exists('..\..\..\Oqtane.Server.dll') Or Exists('..\..\..\bin\Debug\net8.0\Oqtane.Server.dll')">true</RunningInOqtane>
    <OqtaneIsProd Condition="Exists('..\..\..\Oqtane.Server.dll')">true</OqtaneIsProd>
    <OqtaneIsDev Condition="Exists('..\..\..\bin\Debug\net8.0\Oqtane.Server.dll')">true</OqtaneIsDev>
  </PropertyGroup>

  <!-- Settings for Dnn -->
  <PropertyGroup Condition="'$(RunningInDnn)' == 'true'">
    <!-- Specify .net 4.7.2, C# 8.0 and Bin folder for DNN - see https://go.2sxc.org/vscode -->
    <TargetFramework>net472</TargetFramework>
    <LangVersion>8.0</LangVersion>
    <PathBin>..\..\..\..\bin</PathBin>
  </PropertyGroup>

  <!-- Settings for Oqtane -->
  <PropertyGroup Condition="'$(RunningInOqtane)' == 'true'">
    <!-- Oqtane 5+ uses .net 8 and a very new C# language version -->
    <TargetFramework>net8.0</TargetFramework>
    <LangVersion>latest</LangVersion>

    <!-- PathBin Oqtane production, the bin folder is in the root, just up 3 folders, no bin-subfolder -->
    <PathBin Condition="'$(OqtaneIsProd)' == 'true'">..\..\..</PathBin>

    <!-- PathBin Oqtane dev/debug, the bin folder is deeper down, up 3 folders and current build folder -->
    <PathBin Condition="'$(OqtaneIsDev)' == 'true'">..\..\..\bin\Debug\net8.0</PathBin>
  </PropertyGroup>


  <!-- IntelliSense: Load all DLLs which exist in Dnn and Oqtane from the bin folder -->
  <ItemGroup>
    <Reference Include="$(PathBin)\ToSic.*.dll" />
    <Reference Include="$(PathBin)\Connect.Koi.dll" />

    <!-- Common Microsoft DLLs -->
    <Reference Include="$(PathBin)\System.Text.Json.dll" />

    <!-- Also load files in the Dependencies folder of the current App -->
    <Reference Include="Dependencies\*.dll" />
  </ItemGroup>

  <!-- IntelliSense: DNN specific -->
  <ItemGroup Condition="'$(RunningInDnn)' == 'true'">
    <!-- also add System.Web and DotNetNuke DLLs - useful when creating APIs, but be aware that it may make your code less hybrid -->
    <Reference Include="$(PathBin)\DotNetNuke.dll" />
    <Reference Include="$(PathBin)\DotNetNuke.*.dll" />
    <Reference Include="$(PathBin)\System.Web.Http.dll" />
    <Reference Include="$(PathBin)\System.Web.WebPages.dll" />

    <!-- System.Web is not in the DNN folder but in the .net Framework installed on the server -->
    <Reference Include="System.Web" />
    <Reference Include="System.Net.Http" />
  </ItemGroup>

  <!-- Polymorphism - if have files with the same classes confuse IntelliSense - see https://go.2sxc.org/vscode -->
  <!-- Example: exclude /live as we're always working on /staging -->
  <ItemGroup>
    <None Remove="live\**" />
    <Content Remove="live\**" />
    <Compile Remove="live\**" />
    <EmbeddedResource Remove="live\**" />
  </ItemGroup>

</Project>

We're almost done with our new implementation. The new implementation will work with the latest C# DevKit without any issues, and it will be much easier to maintain.

All you need is to import the new App-Extension here TODO:

Now app.csproj will look approximately like this:

<Project Sdk="Microsoft.NET.Sdk.Web">
  <!-- This file helps VS Code provide IntelliSense - see https://go.2sxc.org/vscode -->

  <!-- Best keep this file small and use imports from extensions/dotnet-project. -->

  <!-- Import everything so it just magically works. -->
  <Import Project="extensions\dotnet-project\all-in-one.import.csproj" />
  <!-- Note: For fine-grained control, import the individual files instead of the all-in-one. -->

</Project>

Tip

That's all you need with the new implementation - the all-in-one.import.csproj will do all the work for you.

If you want to extend the app.csproj with your own settings, you can do that as well. Here's an example where we needed another DLL.

<Project Sdk="Microsoft.NET.Sdk.Web">
  <!-- This file helps VS Code provide IntelliSense - see https://go.2sxc.org/vscode -->

  <!-- Best keep this file small and use imports from extensions/dotnet-project. -->

  <!-- Import everything so it just magically works. -->
  <Import Project="extensions\dotnet-project\all-in-one.import.csproj" />
  <!-- Note: For fine-grained control, import the individual files instead of the all-in-one. -->

  <!-- Load other important DLLs which are not in the main bundle -->
  <ItemGroup>
    <Reference Include="$(PathBin)\System.Collections.Immutable.dll" />
  </ItemGroup>
</Project>

You can also import individual files instead of the all-in-one, if you want more control. Just have a look at that file and pick what you need.

More About the `.csproj` File

The following are some additional notes about the .csproj file, how it works and it's values.

At the top of the .csproj file, we detect if we're running in Dnn or Oqtane like this:

  <!-- First: Detect if it's running in Dnn, Oqtane-Production or Oqtane-Dev -->
  <PropertyGroup>
    <RunningInDnn Condition="Exists('..\..\..\..\bin\DotNetNuke.dll')">true</RunningInDnn>
    <RunningInOqtane Condition="Exists('..\..\..\Oqtane.Server.dll') Or Exists('..\..\..\bin\Debug\net8.0\Oqtane.Server.dll')">true</RunningInOqtane>
    <OqtaneIsProd Condition="Exists('..\..\..\Oqtane.Server.dll')">true</OqtaneIsProd>
    <OqtaneIsDev Condition="Exists('..\..\..\bin\Debug\net8.0\Oqtane.Server.dll')">true</OqtaneIsDev>
  </PropertyGroup>

This sets variables such as RunningInDnn and RunningInOqtane which you can use later in the file. You can see it in action in things such as:

  <!-- Settings for Dnn -->
  <PropertyGroup Condition="'$(RunningInDnn)' == 'true'">
    <!-- this is only applied, if the condition above is true -->
    <TargetFramework>net472</TargetFramework>
  </PropertyGroup>

The TargetFramework is the .net Framework you are targeting. The value like net472 or net48 are called target framework moniker or TFM. You can find a list of them on the Microsoft Docs. Recommended values:

Dnn: net472 or net48 (officially, Dnn requires 4.7.2, but 4.8 is what is normally installed because of security)
Oqtane: net8.0 (Oqtane 5+)

The LangVersion is the C# version you are using. You can find a list of them on the Microsoft Docs. Recommended values:

Dnn: 8.0 (Dnn 9.6.1+ using 2sxc 17 and Roslyn Compiler)
Oqtane: latest or 12.0 (Oqtane 5+)

The PathBin variable is used to specify the path where the DLLs are. This allows us to use the same rules for Dnn and Oqtane, just with a different path to start from. Here's what you should know:

Dnn usually has the App files in /Portals/[portal]/2sxc/[app]/ so the DLLs relatively in ..\..\..\..\bin
Oqtane has the App files in /2sxc/[site-id]/app/ but the DLLs are in different locations depending on Dev vs. Production builds
- in development built it places the DLLs in \bin\Debug\net8.0 so the relative path is usually ..\..\..\bin\Debug\net8.0
- in production builds it places the DLLs in the root folder, so the relative path is usually ..\..\..

If you're working with Polymorphism then you have many of the same files, which confuses IntelliSense. For example, /live and /staging have the same files, and /bs3, /bs4 and /bs5 have the same files. So intellisense might find the same class in multiple places, and show warnings.

To handle this, you should decide which is your primary folder, and then exclude the others. This is just an example to exclude /live as we're always working on /staging:

  <!-- Example: exclude /live as we're always working on /staging -->
  <ItemGroup>
    <None Remove="live\**" />
    <Content Remove="live\**" />
    <Compile Remove="live\**" />
    <EmbeddedResource Remove="live\**" />
  </ItemGroup>

GitIgnore Temporary Folders

Add these lines to your .gitignore file to prevent temporary files from being added to your repository:

.vs/
obj/
bin/

Check for Edge Cases - DNN with .net 4.7.2 / 4.8

If you're using DNN with .net 4.7.2 or 4.8, you may have to do some extra work. We're still not 100% sure what this is, since our dev PCs are always setup with all kinds of build tools where it works. According to research by Accuraty you may need to follow the instructions as noted on the C# extension.

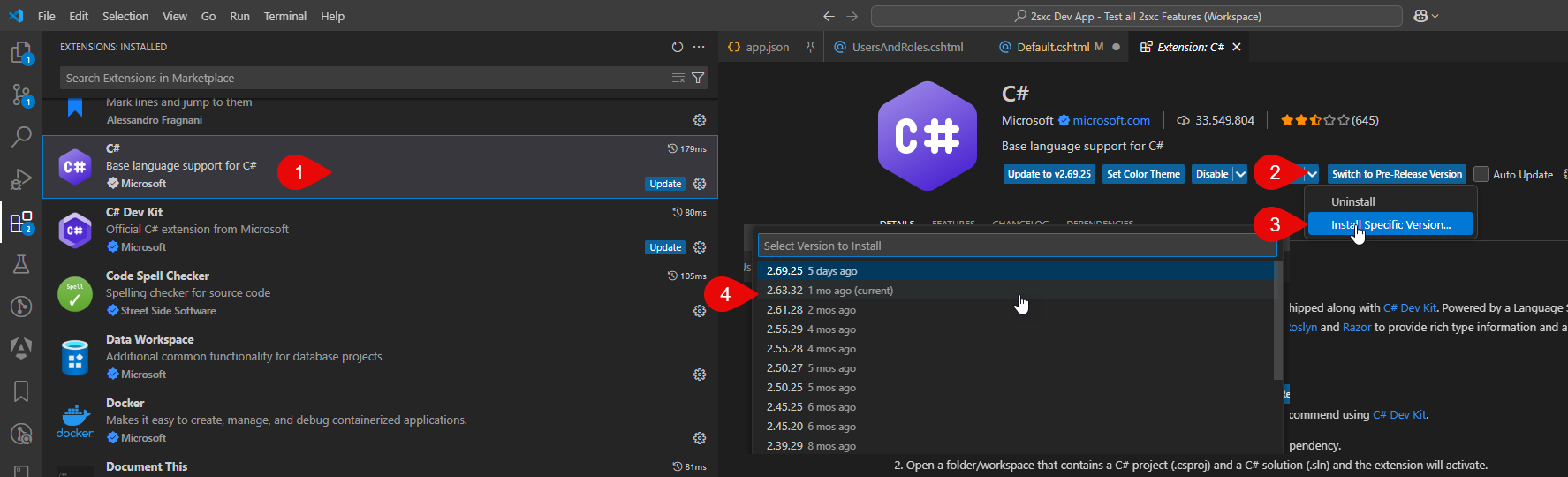

The C# extension is auto-installed by the Dev-Kit, but there is this (quoted):

Note

Note: If working on a solution that requires versions prior to .NET 6 or non-solution based projects, install a .NET Framework runtime and MSBuild tooling.

Set omnisharp.useModernNet to false and set dotnet.server.useOmnisharp to true
Uninstall or disable C# Dev Kit we're not sure if this is correct any more!
Windows: .NET Framework along with MSBuild Tools
MacOS/Linux: Mono with MSBuild

According to our current understanding you don't need to do this is you have Visual Studio 2022 installed. We assume that already includes all the bits which VS Code needs as well.

We haven't been able to verify or simplify this, but if you're having trouble, do read the blog post by Accuraty as well.

Warnings when Using IntelliSense

Warning

IntelliSense can show you internal APIs which will change over time.

IntelliSense is an amazing productivity boost, but you should avoid using internal APIs.

To make this unlikely, we spent a LOT of time to clearly mark internal stuff. Avoid the following:

Almost everything in the ToSic.Eav.* namespace is usually internal, so avoid using it
1. Exception: ToSic.Eav.DataSource and ToSic.Eav.DataSources are really public
Anything in a *.Internal namespace
Anything in a *.Integration namespace
Anything in a *.Backend namespace
Anything in a *.Sys namespace
Anything marked with [Obsolete]
Anything marked with [EditorBrowsable(EditorBrowsableState.Never)] - IntelliSense will not show these APIs
Properties beginning with an underscore, eg _Something

Known Issues when C# IntelliSense is not Working

Tip

Here we try to collect known issues and solutions.

A razor file has the same name as a C# class in the AppCode Folder
This will confuse the IntelliSense, since the Razor file will magically be seen as a class with the same name. Solution: Rename the Razor file to something else.

Configure an App for JavaScript IntelliSense

TODO: this is not yet documented

Other Guides

Very helpful guide by Accuraty

History

Added v16.07 2023-10
2024-06-19 - Added more details about the .csproj file incl. date-version and correct DNN System.Net.Http reference

Shortlink: https://go.2sxc.org/vscode
